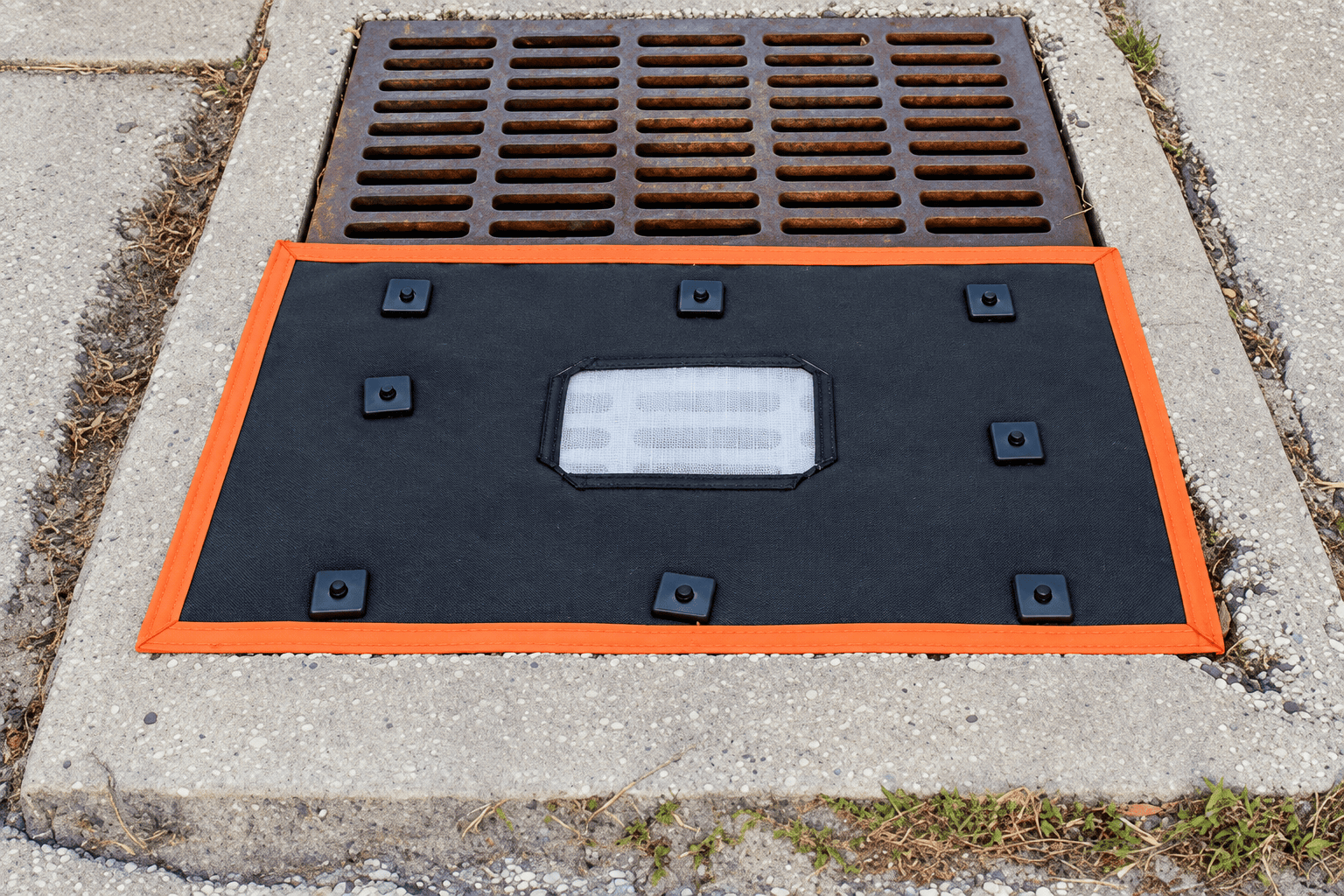

• Installed square over-the-grate storm drain filter with black geotextile fabric, orange perimeter edging, fasteners, and overflow port for stormwater inlet protection.

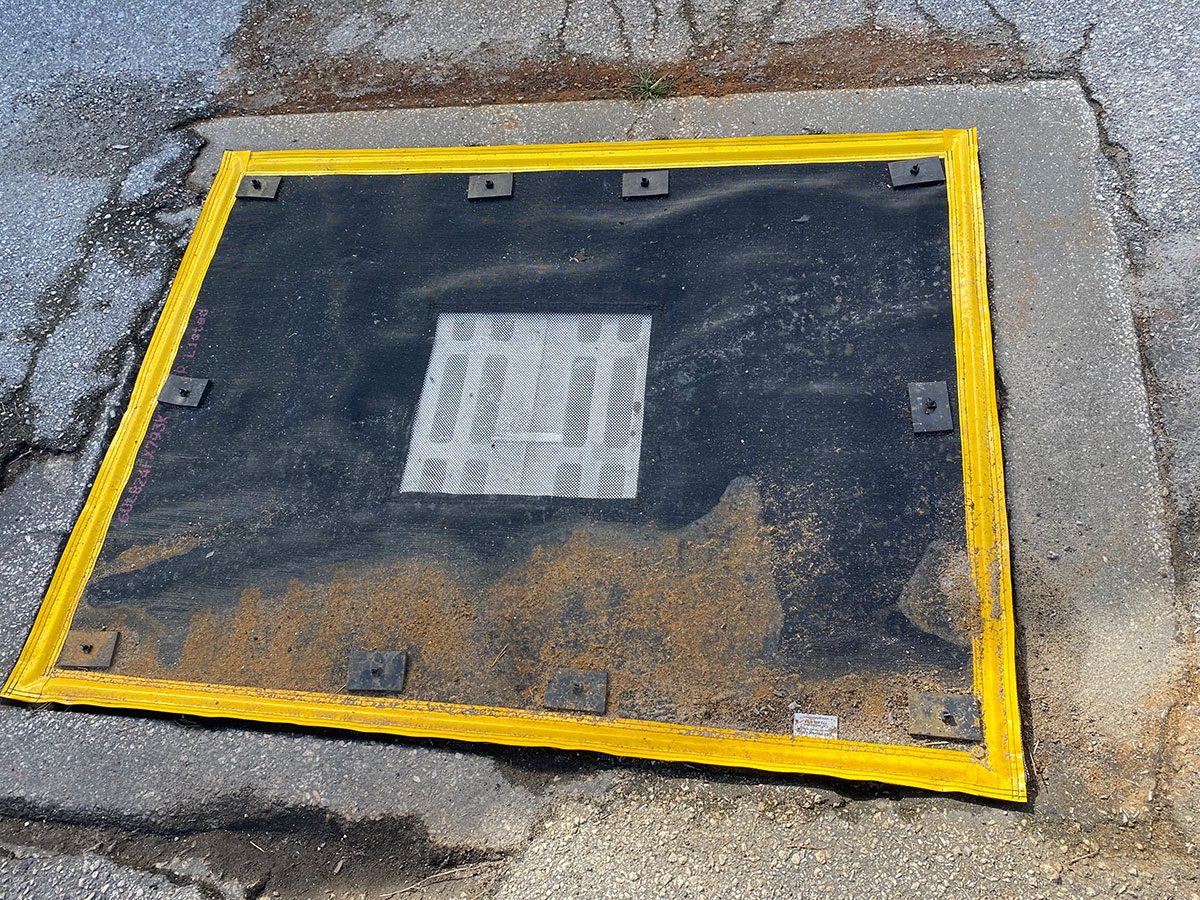

  • Storm drain inlet protected by an over-the-grate stormwater BMP designed to capture sediment, debris, and pollutants before they enter the drainage system.

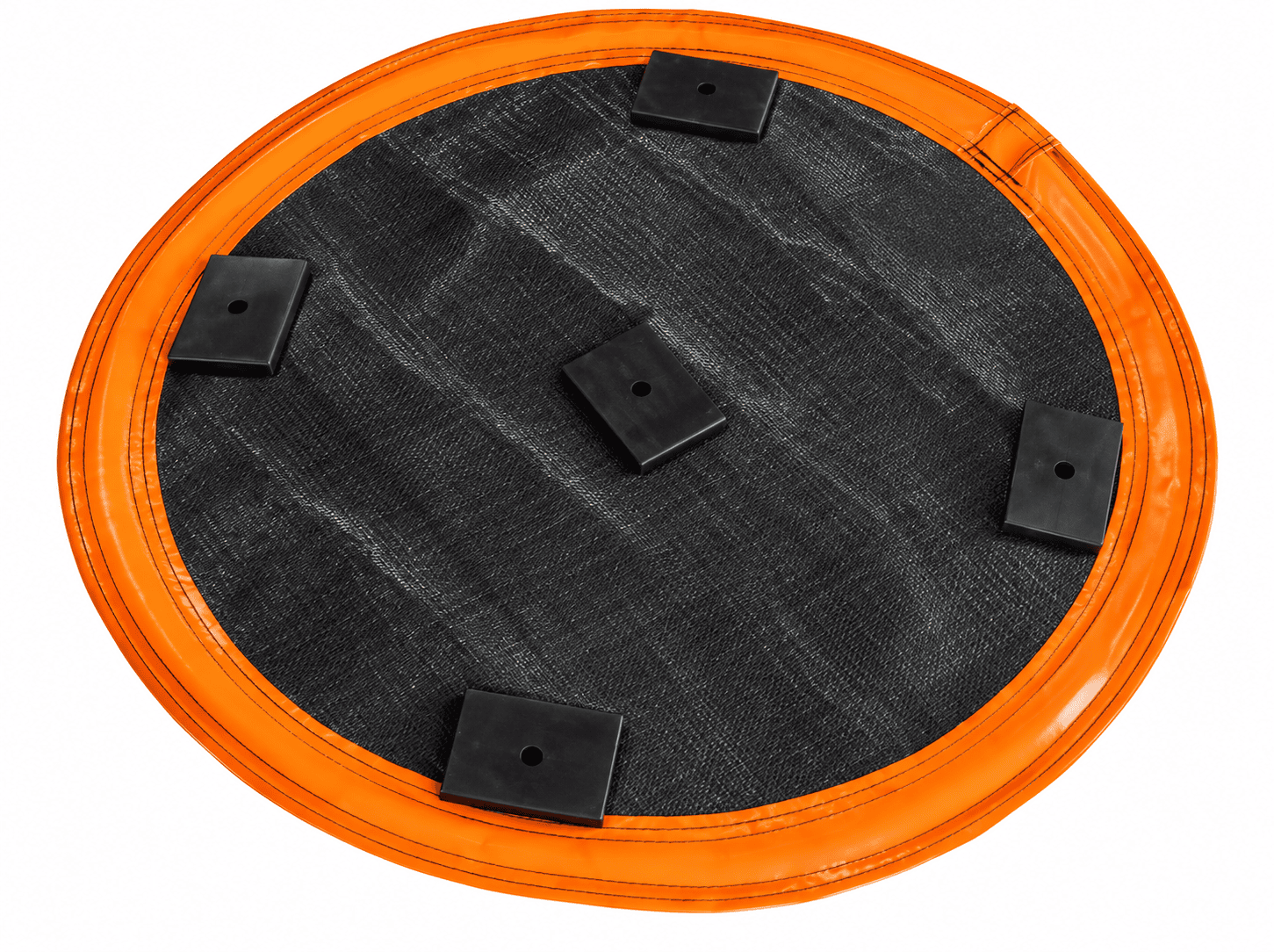

  • Round over-the-grate storm drain filter with black geotextile fabric and orange perimeter designed to capture sediment, debris, and pollutants from stormwater runoff.

Over Grate Protection

Key Specs

  • Size: 18 in. to 60 in. Square, Round, (Custom Options Available)
  • Fabric Material: Woven Geotextile Filter Fabric, 10% Monofilament Structural Grid

Overview

Grate Solutions help keep contaminants such as silt, trash, and debris out of stormwater runoff and drainage systems. They comply with local and federal stormwater regulations and reduce pollutants from entering storm drain systems. These products provide protection without the difficulty of removing heavy iron grates. Avoid the safety problems of intrusive high-profile products. Keep a low profile, easy installation, and don’t get in the way of vehicles or street sweepers using these quick connect systems.

  • Filters Water Entering Stormwater Systems.
  • Installs on TOP of Drain Grate.
  • Low-Profile and Easy
  • Filters Harmful Materials. Maintenance.
  • Other Sizes Available on Request.
  • Alternative Fabrics with Various AOS and Flow Rates Available.
  • Also Available for Round Grates.

OPTIONS & SPECIFICATIONS

Size 18 in. to 60 in. Square, Round, (Custom Options Available)
Fabric Material Woven Geotextile Filter Fabric, 10% Monofilament Structural Grid
Standard Filter Silt, Sand, Trash, Debris
Includes Fabric, Top and Bottom Brackets, Heavy-Duty Fasteners
Installation Grate Removal Not Required, One Person Installation
Drain Shape Round, Square, or Rectangular Drains
Add On Option Diamond Mesh Overflow Window for Visibility Into Drain and to Help Prevent Ponding

MEDIA GALLERY

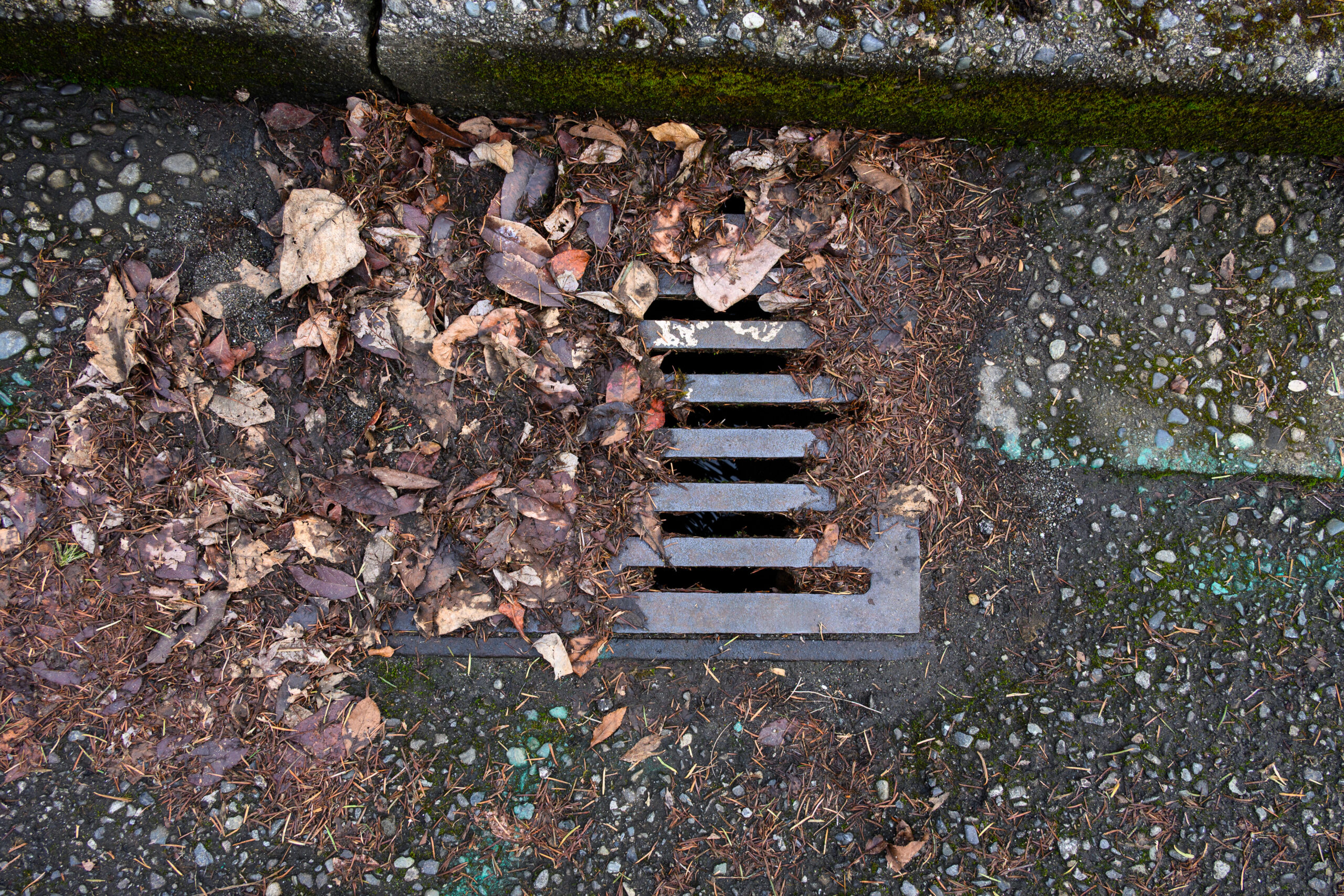

Storm drain grate partially blocked by leaves and organic debris, showing the need for inlet protection to help keep pollutants out of stormwater systems.

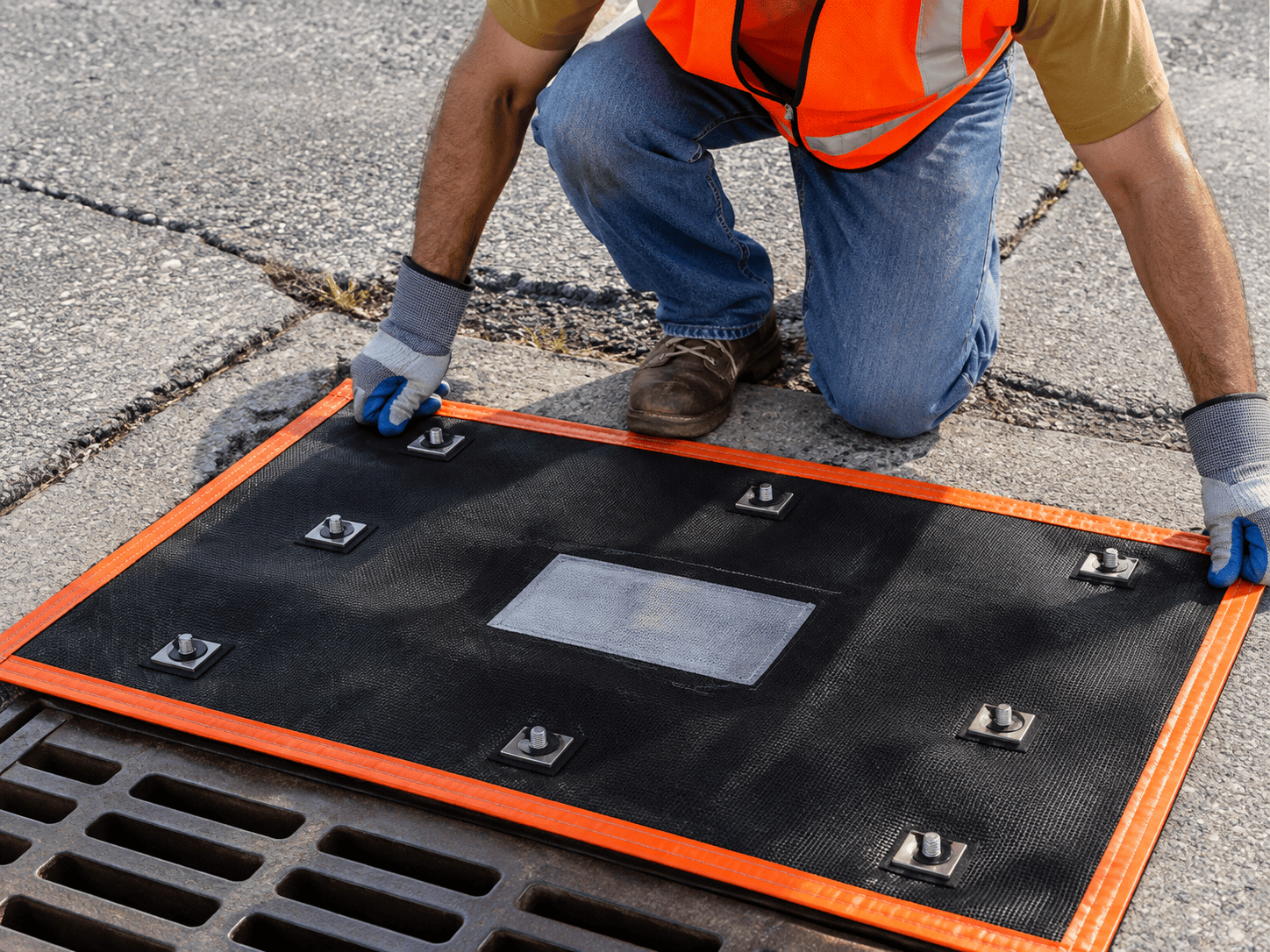

Worker installing an over-the-grate storm drain inlet protection filter with orange perimeter edging to help capture sediment, debris, and pollutants from stormwater runoff.

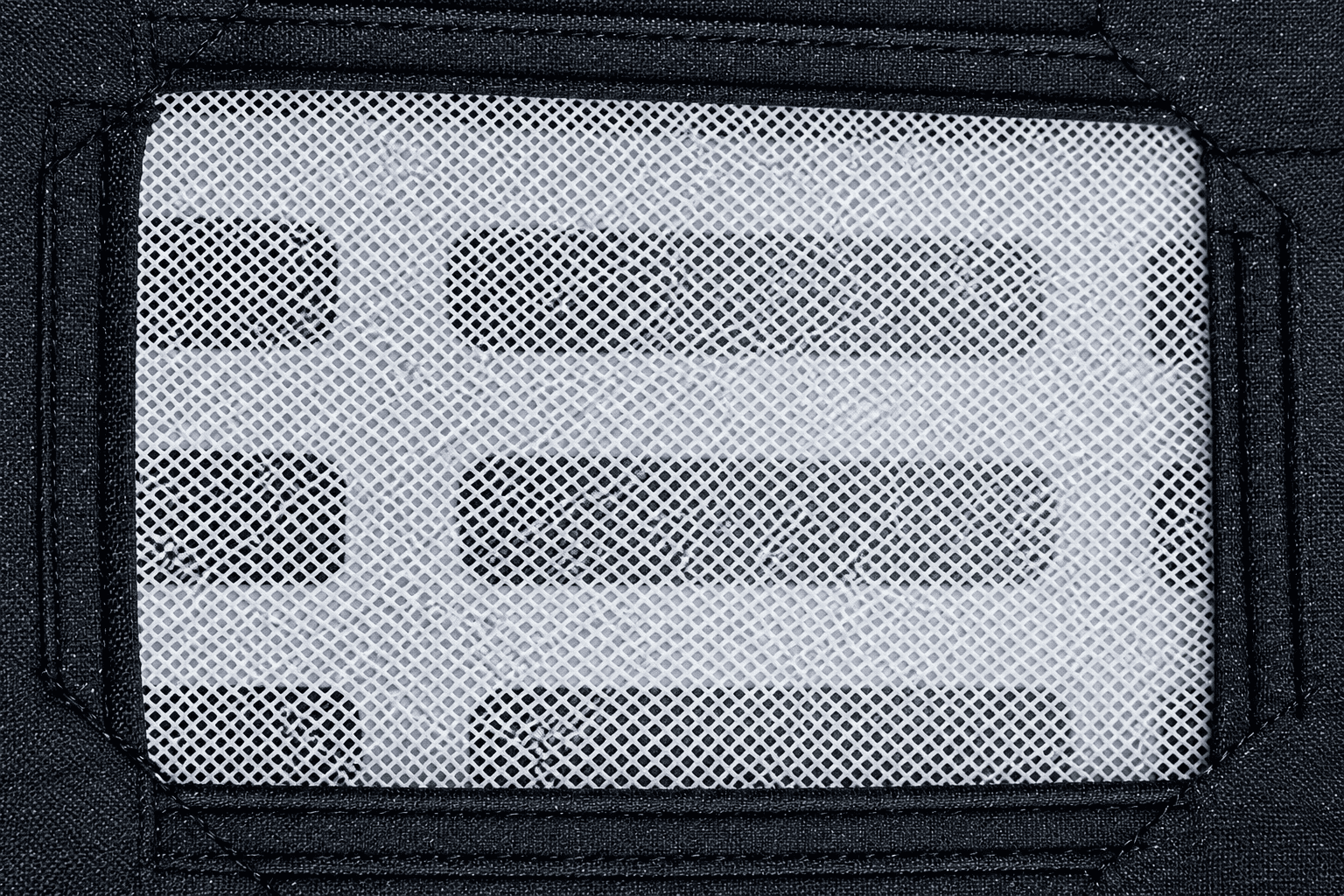

Close-up of a storm drain inlet protection overflow port designed to maintain increased water flow while filtering sediment and debris during stormwater runoff.

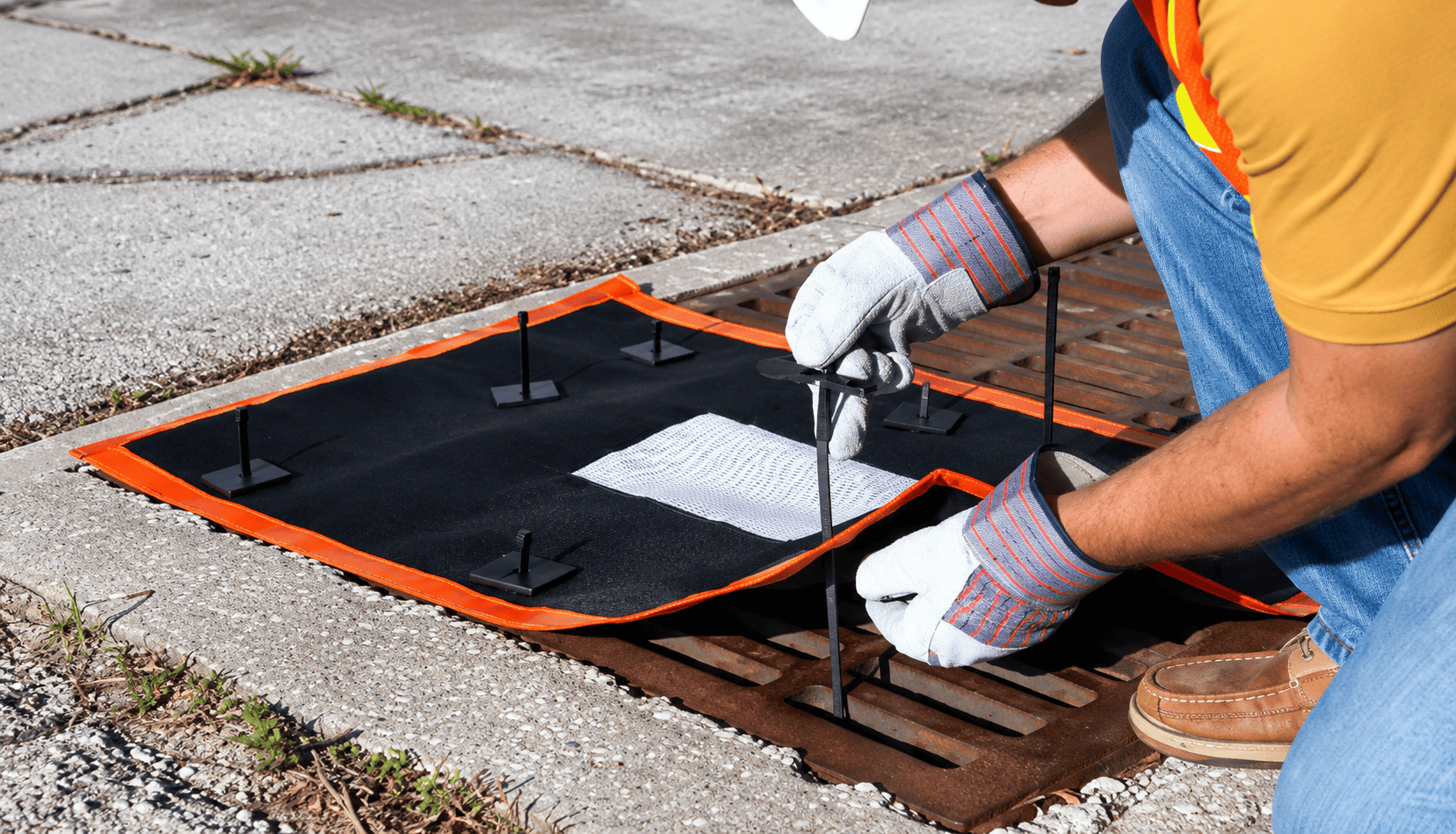

Worker securing an over-the-grate storm drain inlet protection filter with fasteners to keep the stormwater BMP in place over a catch basin.
Round over-the-grate storm drain filter with black geotextile fabric and orange perimeter designed to capture sediment, debris, and pollutants from stormwater runoff.

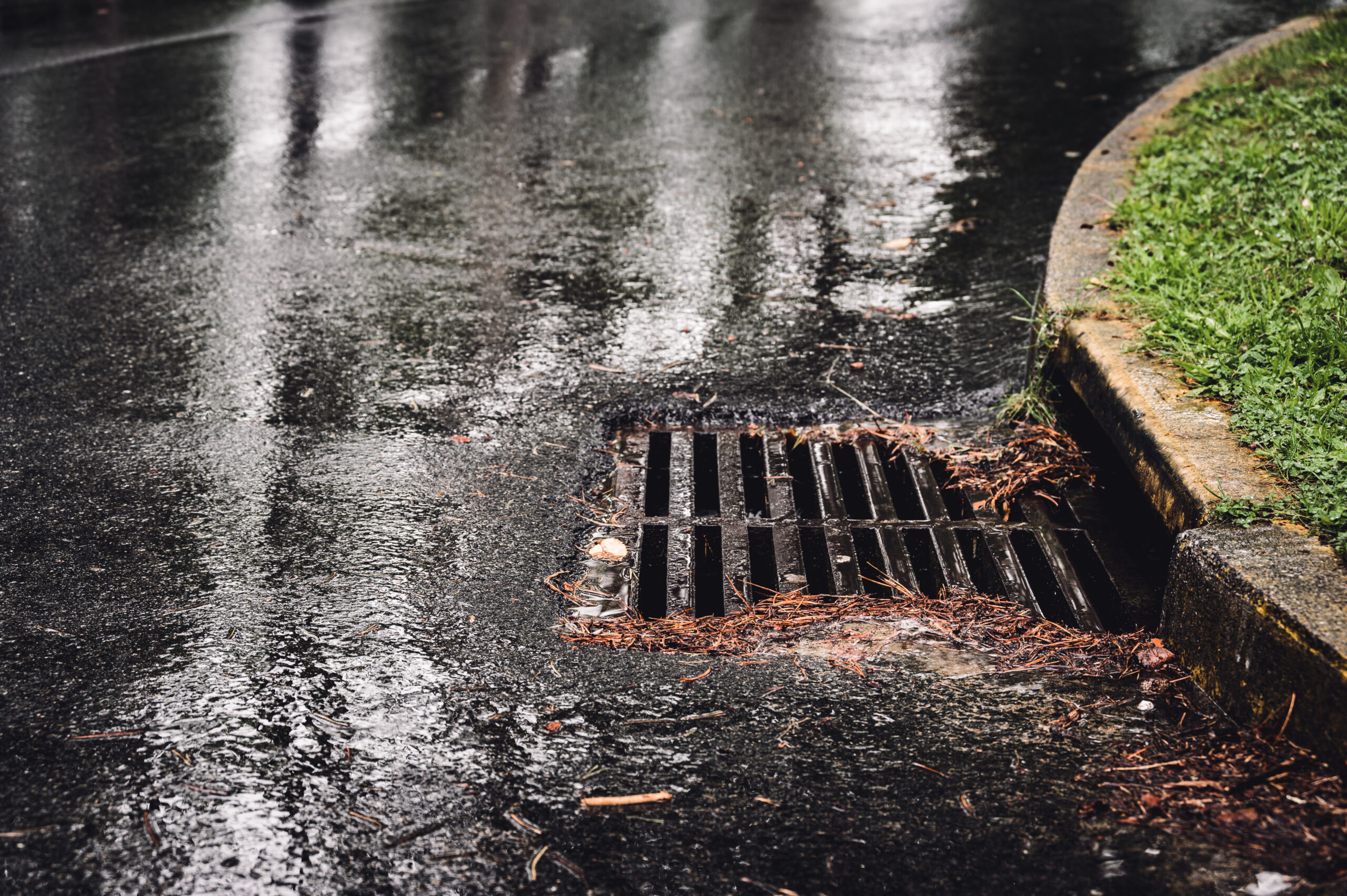

Stormwater runoff flowing into a curbside storm drain with leaves and debris around the inlet, highlighting the need for storm drain protection and sediment control BMPs.

Over grate protection is a Stormwater Best Management Practice (BMP) installed directly over a storm drain grate to help prevent sediment, silt, sand, debris, trash, and other pollutants from entering the stormwater system. The filter allows stormwater to flow toward the drain while capturing contaminants before they enter the drainage system and potentially reach surrounding waterways.

Stormwater flows toward and through the over grate filter before entering the drain. The filtration materials help capture sediment and debris, while perimeter sediment ridges promote settling of suspended particles. The Enviro-USA™ over grate design also incorporates a center overflow port to provide additional flow capacity and help reduce ponding during higher-flow conditions.

Over grate filters are designed primarily to help block silt, sediment, sand, and mid-sized debris before these pollutants enter a storm drain. Depending on the contaminants present and the filtration configuration, additional absorbent or treatment media may be incorporated for other pollutants.

Over grate filters can be used at construction sites, parking lots, roadways, industrial facilities, and commercial or residential properties where storm drains need protection from sediment and debris carried by stormwater runoff.

  • Construction sites are a primary application for over grate storm drain protection. The filters can help prevent disturbed soil, sediment, debris, and other pollutants carried by runoff from entering stormwater drainage systems.
  • Parking lots and roadways can use Over Grate Drain Covers. Their low-profile design allows them to sit directly over existing drain grates while filtering runoff before it enters the stormwater system.
  • Industrial facilities can use over grate protection as part of a broader stormwater-management program to help prevent sediment, debris, and other pollutants from entering storm drains. The filtration media should be selected according to the contaminants expected at the site.

No. One of the primary advantages of the Taurus Over Grate Drain Cover is that it does not require removal of the existing drain grate. The unit lies directly on top of the drain, simplifying installation and avoiding the need to lift heavy grates.
